X2000
芯片框图 芯片规格 资料下载 应用 开发平台
X2000
Multi-core Heterogeneous Crossover Micro-Processor
  • Dual XBurst®2, frequency at 1.2GHz
  • XBurst®0(240MHz) for security and real time control
  • H.264 coder/decoder, up to 1080P@30fps
  • LPDDR3:128MB
  • Dual MIPI interfaces for cameras + dual ISPs with real time sync for the 2 cameras
  • Peripheral interfaces
    • 样片申请
    芯片框图
    芯片规格
    CPU
    Three MIPS ISA cores：Dual XBurst®2 at 1.2GHz and an XBurst®0 at 240MHz
    Hardware FPU, 128bit MXA
    32KB L1 cache and 512KB L2 cache
    32KB SRAM
    Memory
    SIP LDDR3/LPDDR2 64M-512MBytes
    VPU
    H.264 Encoder
    – Input data format NV12/NV21
    – Resolution up to 1920x1080@30fps
    H.264 Decoder
    – Output data format NV12/NV21
    – Resolution up to 1920x1080@30fps
    JPEG Codec
    – JPEG compressing/decompressing up to 70Mega-pixels per second
    – Base Line ISO/IEC 10918-1 JPEG
    ISP
    Data format
    – DVP: supports raw8/10/12/YUV422 input
    – MIP: resolution up to 1080P@60fps
    – Supports dual-camera sync
    Display
    MIPI-DSI2 interface: resolution up to 1920x1080@40Hz
    SLCD interface: resolution up to 640x480@60Hz,24BPP
    RGB interface: resolution up to 1280x720@60Hz, 24BPP
    Camera
    Supports DVP 8bit/MIPI input, resolution up to 1280x720@30fps
    Supports exposure control
    Supported data formats: RGB888, RGB565, YCbCr 4:2:2
    Audio
    Internal Audio Codec (DAC and ADC working together)
    Low power DMIC controller, low power voice trigger
    I2S/SPDIF for external codec
    PCM interface with master/slave mode
    Peripherals
    I2C x6
    SPI x2
    USB 2.0 OTG x1
    RGMII x1
    MMC/SDIO x3
    UART x10
    Quad SPI x1
    I2S x3
    PCM x1
    Security
    2Kbits OTP ROM
    Supports RSA(2048bits) and AES(256bits)coding with hardware
    Supports security boot
    Package
    BGA-270, 12mm x 12mm x 1.2mm, 0.65mm Pitch
    资料下载
    X2000 Product Brief
    点击下载
    X2000 Data Sheet
    点击下载
    X2000_Low_Power
    点击下载
    X2000_Three_Cameras
    点击下载
    X2000_Three_Cores
    点击下载
    应用
    QR Code
    查看应用
    Biometric Identification
    查看应用
    Printer
    查看应用
    Education Electronics
    查看应用
    开发平台

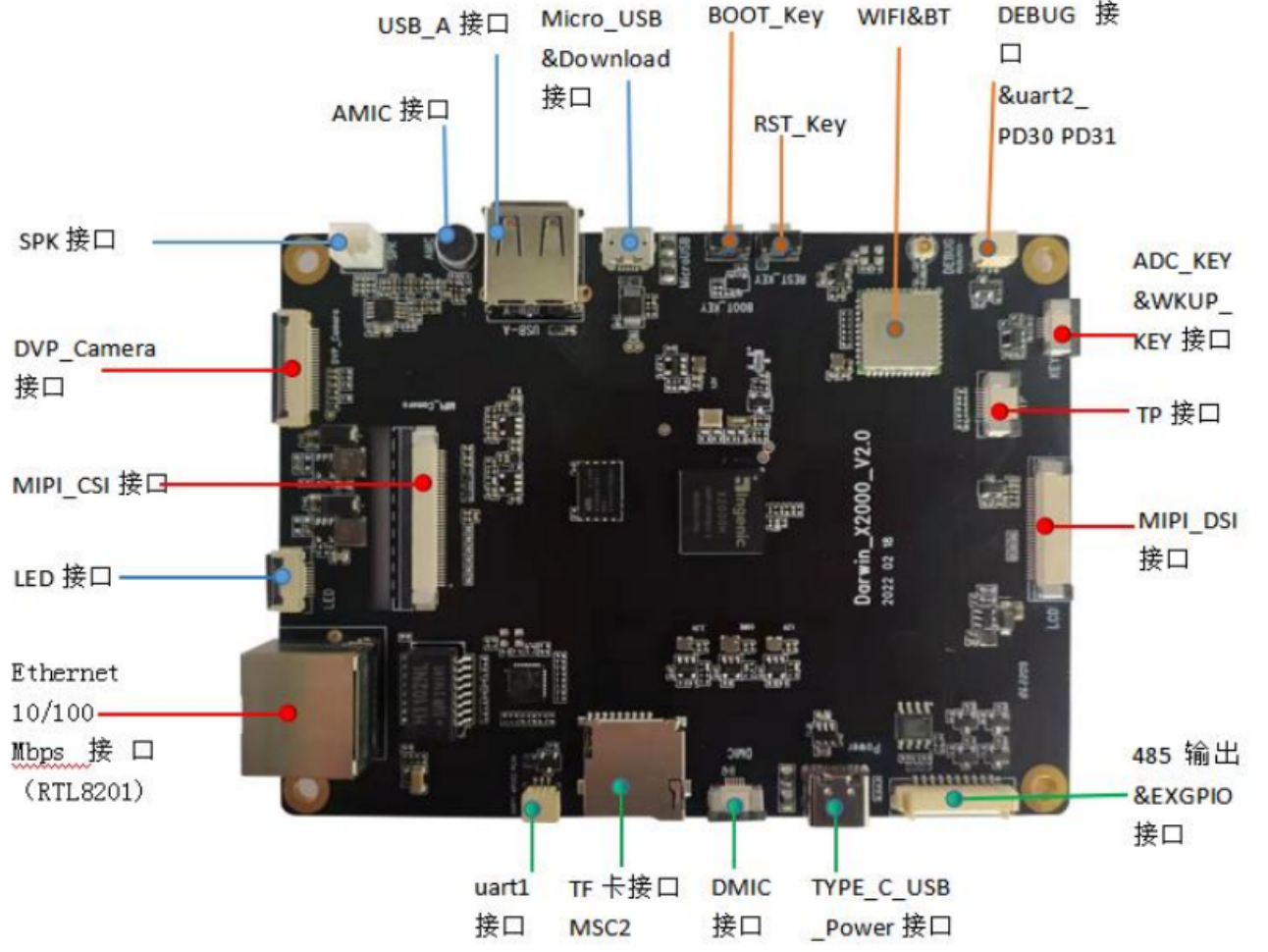

    人脸识别方案开发板 可适配X2000/X2000E/X2000H
    Darwin Development Kit
    立即购买
    千兆网 可适配X2000/X2000E/X2000H
    Halley5 Development Kit
    立即购买
    可适配X2100L/X2100
    Kale Development Kit
    立即购买
